AccelTex® Solutions

2.4/5 GHz 13 dBi 4 Element Indoor/Outdoor Patch Antenna with RPTNC

The AccelTex Solutions dual band indoor/outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space.

Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with integrated mounting holes in the corners of the radome and leads exiting the bottom of the antenna for a flush wall mount. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.

Features

  • ANTENNA TYP
    Patch

  • FREQUENCY RANGE
    2.4-2.485/5.15-5.85 GHz

  • SUITABLE FOR WiFi STANDARDS
    802.11n, 802.11ac

  • CONNECTION

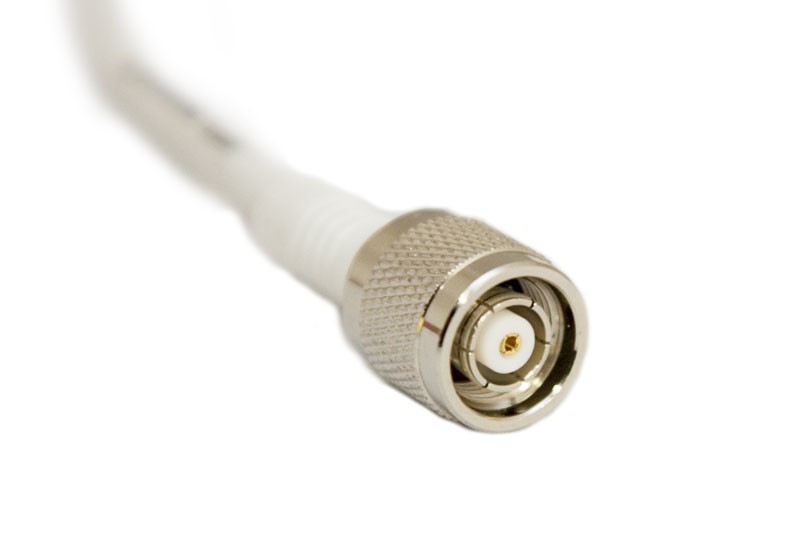

    RPTNC Plug

  • MAX. SIGNAL GAIN
    13 dBi

  • POLARIZATION
    Horizontal
Technical Data 2.4/5 GHz Indoor/Outdoor Patch Antenna
Number of Leads 4
Height 350 mm
Length 350 mm
Width 35 mm
Point of use Indoor or Outdoor Use
Compatible APs Avaya WAO 9122, Cisco 1852e, Cisco 2602e, Cisco 2702e, Cisco 2802e, Cisco 3602e, Cisco 3702e, Cisco 3802e, Cisco Catalyst 9115e, Cisco Catalyst 9120e
Art. No. ATS-OP-245-13-4RPTP-36

BUY ONLINE NOW

Any Questions?

Do you have further questions about the product or need price information?

Datasheet

All product information clearly summarized as a PDF.

Technical Spec Sheet

Technical drawing to view, print or download.

Technical Drawing

Technical drawing for the radiation behaviour of the antenna.
