AccelTex® Solutions

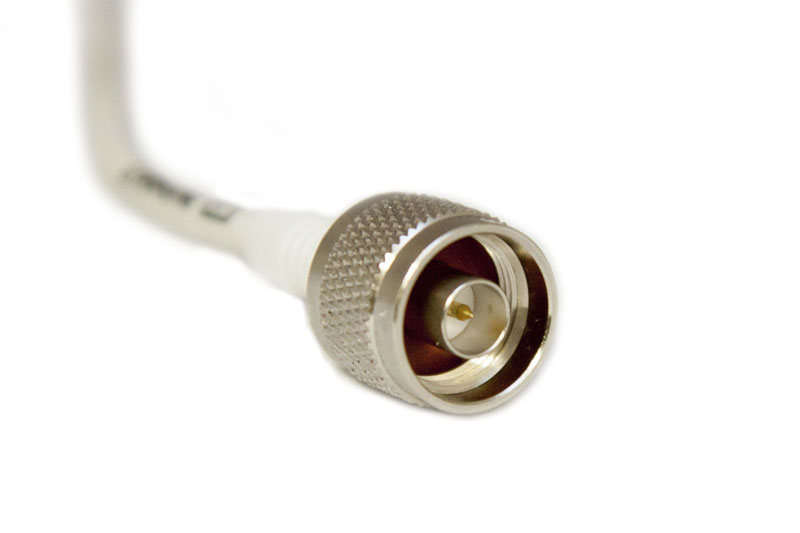

2.4/5 GHz 4/7 dBi 6 Element Indoor/Outdoor Patch Antenna with N-Style

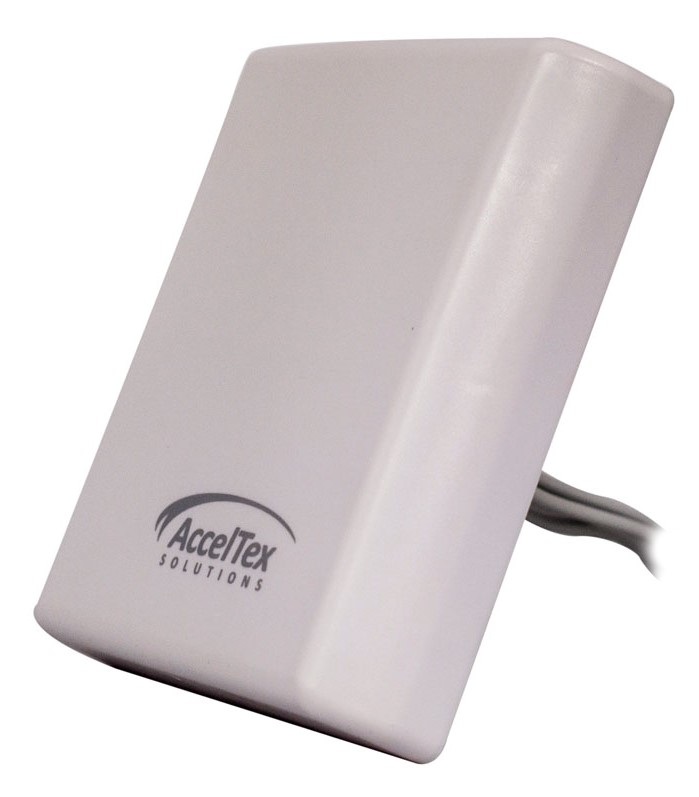

The AccelTex Solutions dual band indoor/outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space.

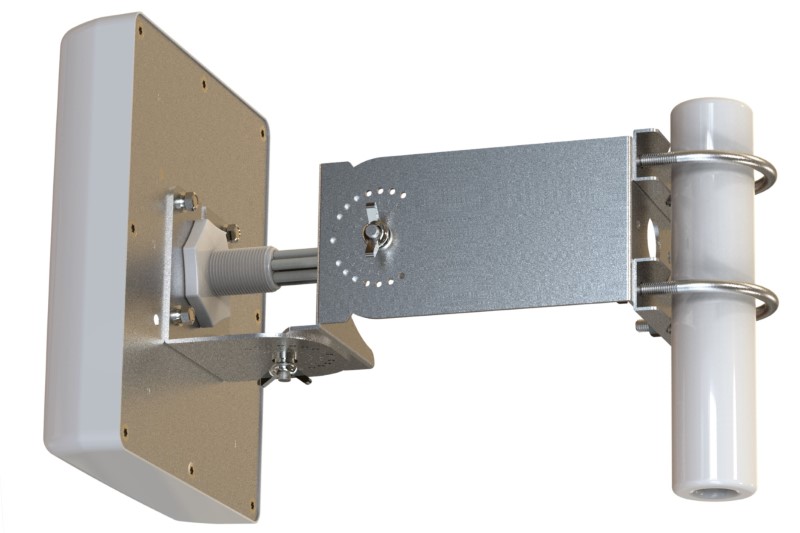

Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with our integrated flush mount for surface mounting through a thin wall or enclosure door and also ships with our articulating wall and pole mount kit. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.
Technical Data | 2.4/5 GHz Indoor/Outdoor Patch Antenna |
---|---|

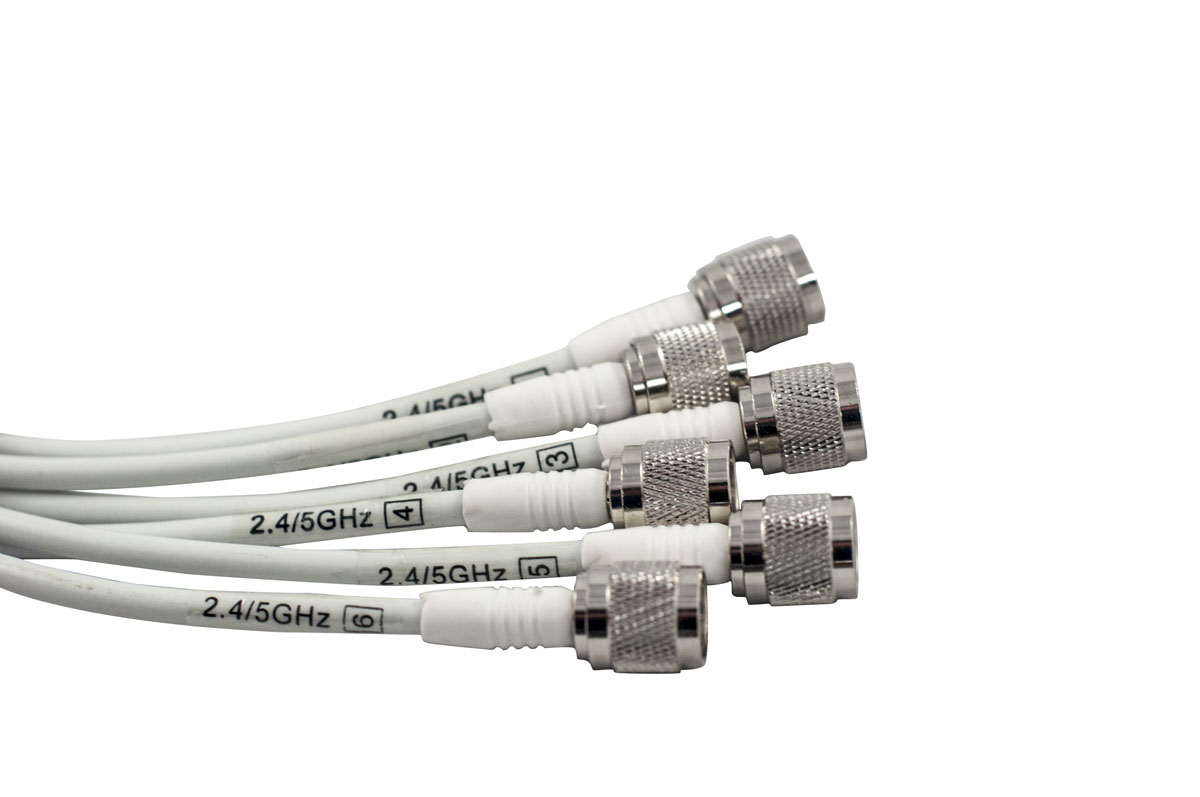

Number of Leads | 6 |
Height | 207 mm |
Length | 177 mm |
Width | 46 mm |
Point of use | Indoor or Outdoor Use |
Compatible APs | Adtran/Bluesocket 1940, Adtran/Bluesocket 2135, Aruba/Hewlett Packard Enterprise AP-274, Aruba/Hewlett Packard Enterprise AP-374, Engenius ENH900EXT, Engenius ENH1750EXT, Engenius EWS860AP, Extreme AP 3865, Meru/Fortinet FAP-S322C, Meru/Fortinet FAP-S322CR, Meru/Fortinet OAP 832e, Zebra/Extreme AP-7562 |
Art. No. | ATS-OP-245-47-6NP-36 |
