AccelTex® Solutions

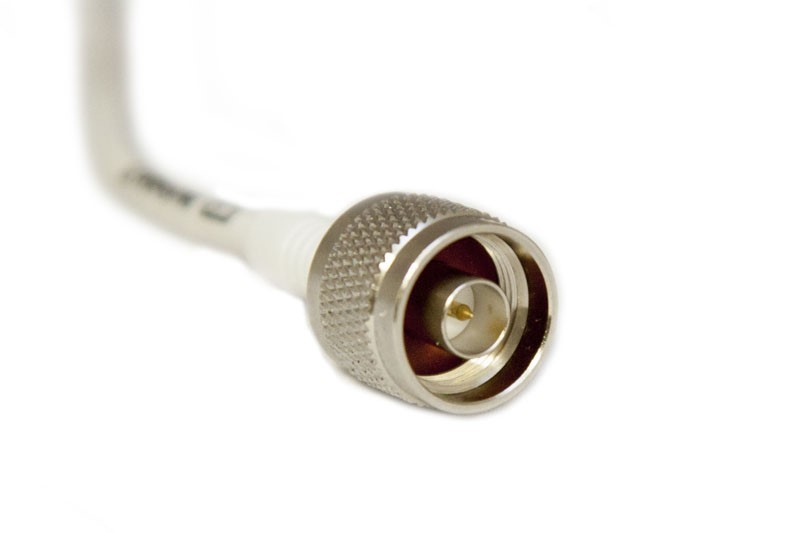

2.4/5 GHz 6 dBi 4 Element Indoor/Outdoor Patch Antenna with N-Style
The AccelTex Solutions dual band indoor/outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space.
Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with integrated mounting holes in the corners of the radome and leads exiting the bottom of the antenna for a flush wall mount. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.
| Technical Data | 2.4/5 GHz Indoor/Outdoor Patch Antenna |
|---|---|
| Number of Leads | 4 |
| Height | 282.5 mm |
| Length | 122.5 mm |
| Width | 27.5 mm |
| Point of use | Indoor or Outdoor Use |
| Compatible APs | Aerohive AP1130, Avaya WAE 9132, Avaya WAO 9132, Cisco 1532e, Cisco 1562e, Cisco 1562ps, Cisco 1572eac, Cisco 1572ec, Cisco Meraki MR66, Cisco Meraki MR72, Cisco Meraki MR74, Cisco Meraki MR84, Engenius ENH710EXT, Engenius ENS620EXT, Meru/Fortinet FAP-222B, Meru/Fortinet FAP-222C, Mist AP 61E |
| Art. No. | ATS-OP-245-6-4NP-36 |
