AccelTex® Solutions

2.4/5 GHz 6 dBi 4 Element Indoor/Outdoor Patch Antenna with RPSMA

The AccelTex Solutions dual band indoor/outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space.

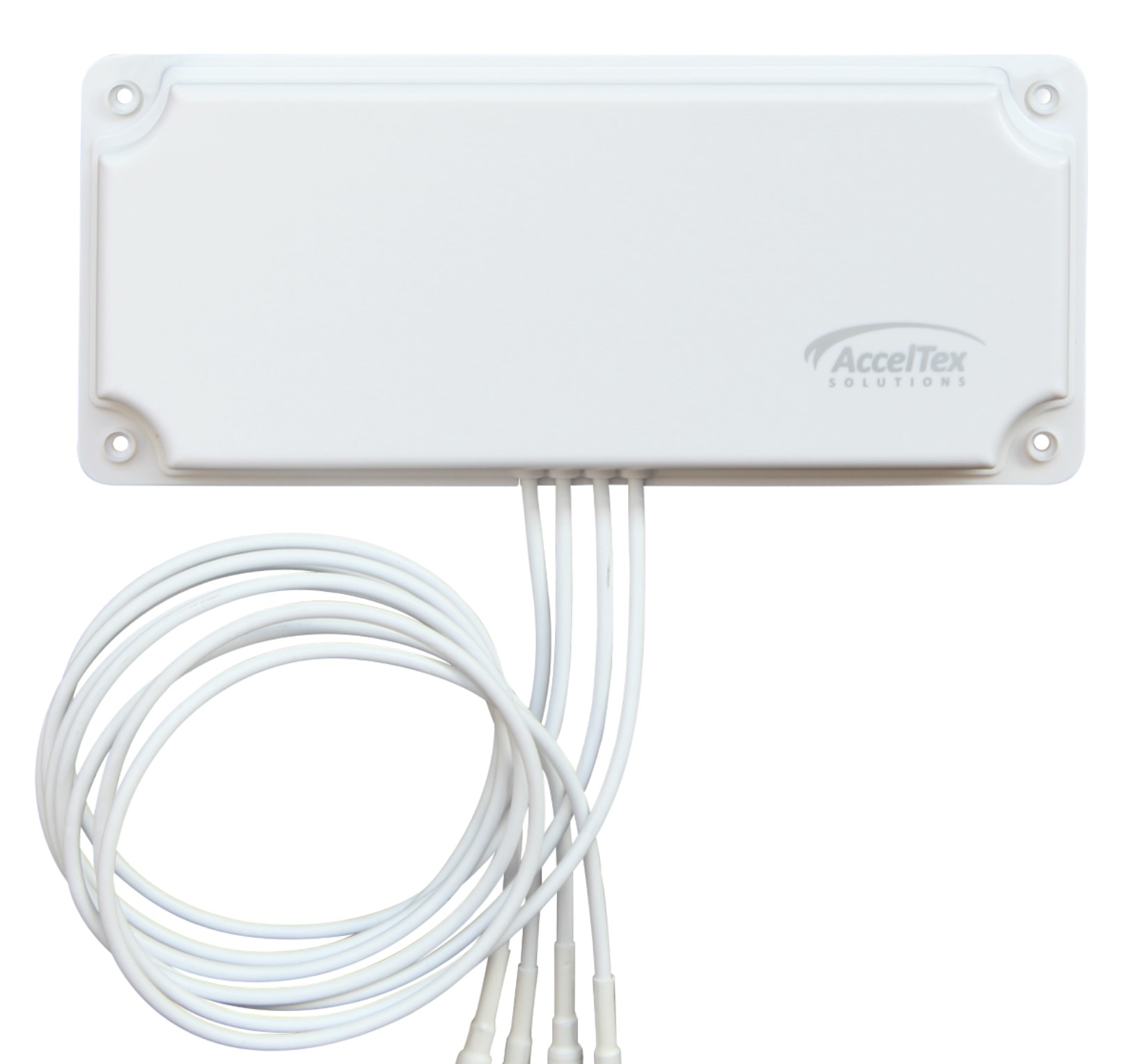

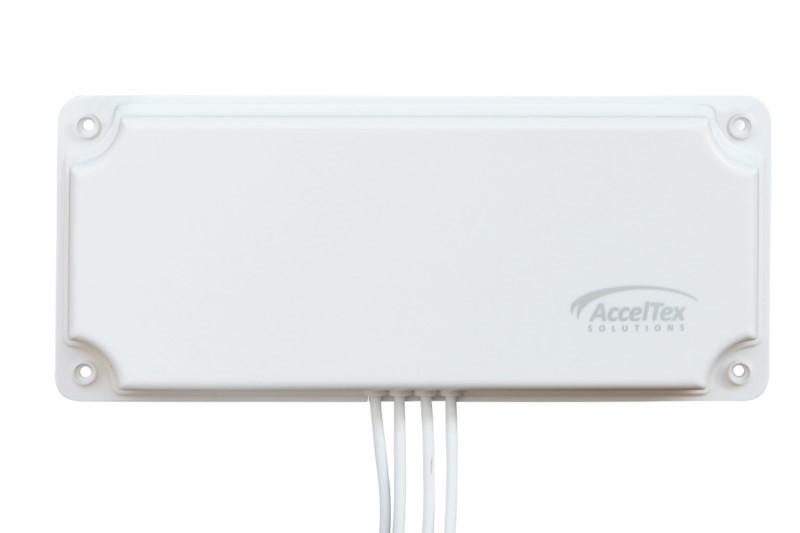

Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with integrated mounting holes in the corners of the radome and leads exiting the bottom of the antenna for a flush wall mount. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.

Features

  • ANTENNA TYP
    Patch

  • FREQUENCY RANGE
    2.4-2.485/5.15-5.85 GHz

  • SUITABLE FOR WiFi STANDARDS
    802.11n, 802.11ac

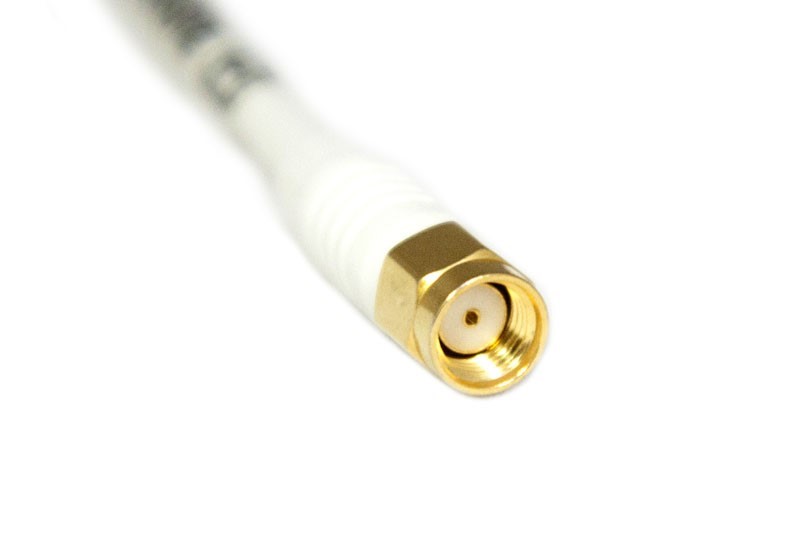

  • CONNECTION
    RPSMA Plug

  • MAX. SIGNAL GAIN
    6 dBi

  • POLARIZATION
    Vertical
Technical Data 2.4/5 GHz Indoor/Outdoor Patch Antenna

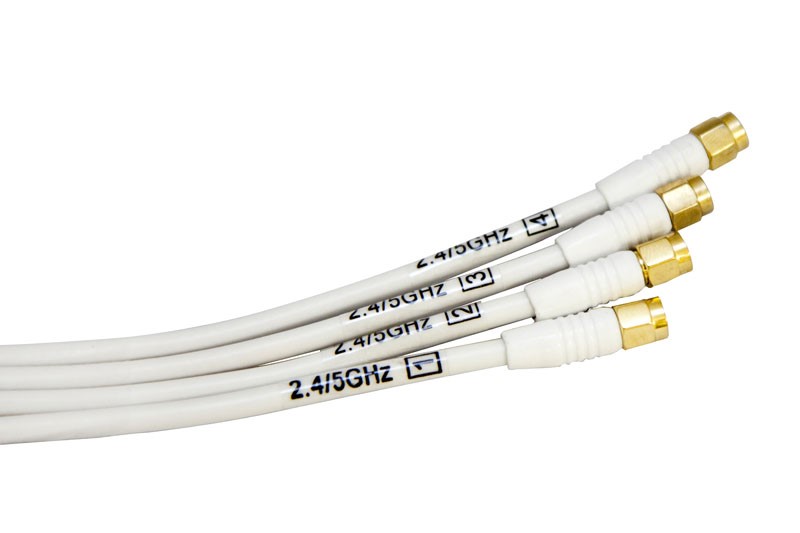

Number of Leads 4
Height 282.5 mm
Length 122.5 mm
Width 27.5 mm
Point of use Indoor or Outdoor Use
Compatible APs Adtran/Bluesocket 1925, Aerohive AP141, Aruba/Hewlett Packard Enterprise AP-314, Aruba/Hewlett Packard Enterprise AP-324, Aruba/Hewlett Packard Enterprise AP-334, Engenius ECB1200, Extreme AP 3805e, Meru/Fortinet AP 1020e, Meru/Fortinet AP 822e, Meru/Fortinet FAP-223C, Meru/Fortinet FAP-224D, Meru/Fortinet FAP-C225C
Art. No. ATS-OP-245-6-4RPSP-36
