Standard OTDR Launch Leads

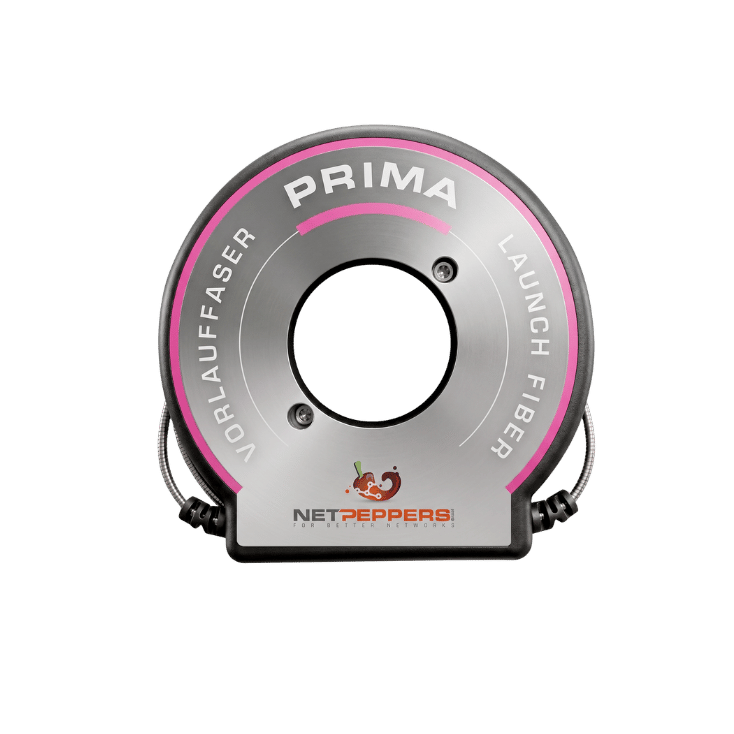

PRIMA Launch Leads for SM & MM
The PRIMA launch leads from NetPeppers offer a cost-effective entry into professional OTDR measurement technology for FTTx and LAN installations.
The PRIMA launch lead is connected in front of an OTDR test link and ensures standards-compliant measurement, making it indispensable. It eliminates unwanted effects from the device on the test link. This is the only way to correctly measure the first and last connectors of a link.

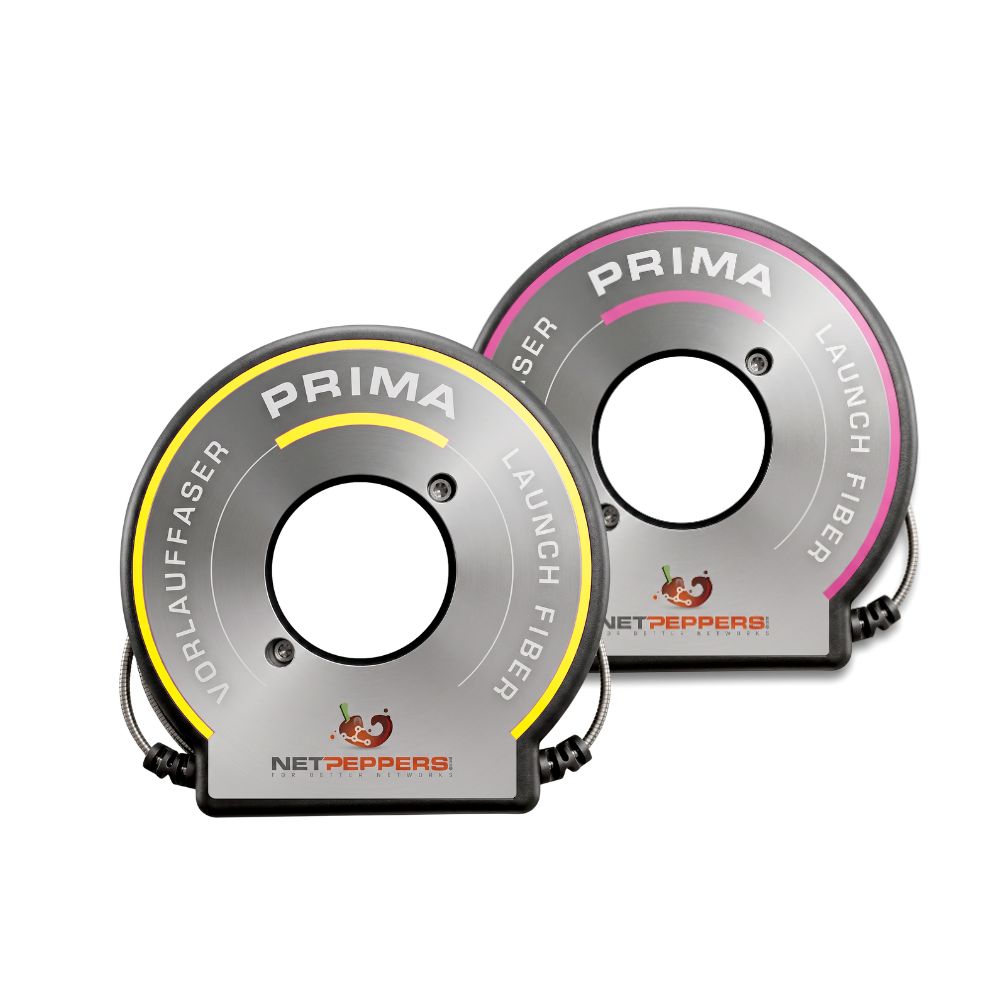

![[Translate to English:] PRIMA Vorlauffasern](/fileadmin/produkte/test-analyse/glasfasertest/netpeppers_vorlauffasern/Prima_Vorlauffasern/prima_vorlauffasern.jpg)
Features
- SECURELY PACKAGED
The ABS/aluminum housing provides optimal protection against dirt and mechanical damage.
- PRACTICAL ATTACHMENT IN USE
The housing fixture enables secure mounting on server cabinets and distribution panels.
- PROOF OF QUALITY
An OTDR measurement report certifies the flawless quality of the launch fibers.
| Technical Data | PRIMA Launch Leads |
|---|---|
| Size | Ø = 130 mm X H 30 mm |
| Weight | 170 g |
| Operating Temperature | -30 °C - +90 °C |
| Total length of Fiber | Up to 150 m |
| Length of Armored Cable Ends | appx. 1,00 m |
| Material | ABS Plastic |
| Fiber Type |
SM: G.657 A2 MM: OM4 |
| Connector Type | SC / LC / ST |
| Connector Polish | UPC / APC |
| Scope of Delivery |
1 PRIMA Launch Fiber 1 Carabiner Mount 1 OTDR and Connector End Face Measurement report 1 Quick Reference Guide |
| Article Nos. |
NP-FIBER-PRIMA-SM1-150-SC/APC–LC/APC NP-FIBER-PRIMA-SM1-150-SC/APC–LC/UPC NP-FIBER-PRIMA-SM1-150-SC/APC–SC/UPC NP-FIBER-PRIMA-MM2-150-SC/UPC-LC/UPC NP-FIBER-PRIMA-MM2-150-SC/UPC-SC/UPC NP-FIBER-PRIMA-MM2-150-SC/UPC-ST/UPC |
