High-Quality Reference Measurement Cables

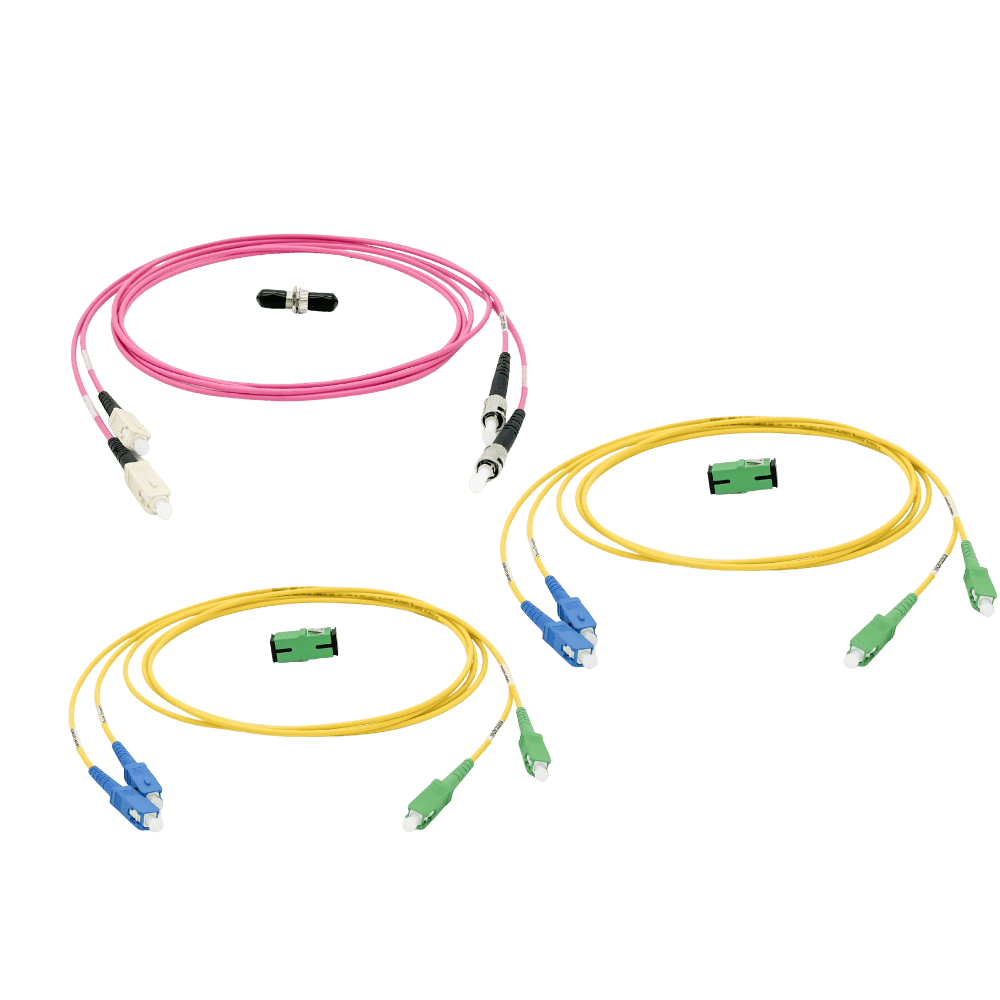

Reference Test Cable Kits
High Repeatability
Guaranteed insertion loss of ≤ 0.1 dB (OM4) and ≤ 0.2 dB (OS2) ensures reliable and repeatable measurement results.
For All Types

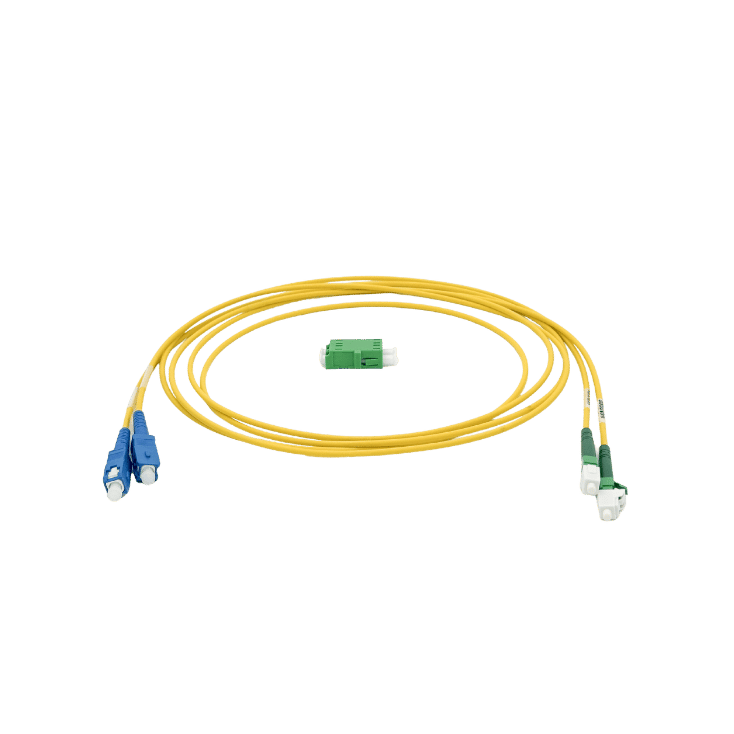

Available for SC, LC, FC, ST, and E2000 connectors in UPC and APC versions for adapting to a wide range of fiber optic connector systems.
Robust and durable
A continuous steel reinforcement beneath the cable jacket provides high tensile strength and ensures long-term durability in daily use.
Features
- RELIABLE MEASUREMENT RESULTS
They provide high measurement repeatability and low insertion loss during attenuation measurements, forming the basis for reliable and repeatable test results.
- CERTIFIED QUALITY
Every reference measurement cable is supplied with a test certificate. Parameters tested include concentricity, insertion loss, return loss, core offset, and core diameter.
- HIGH RETURN LOSS
Guaranteed return loss of > 35 dB (Multimode UPC), > 50 dB (Singlemode UPC), and > 85 dB (Singlemode APC).

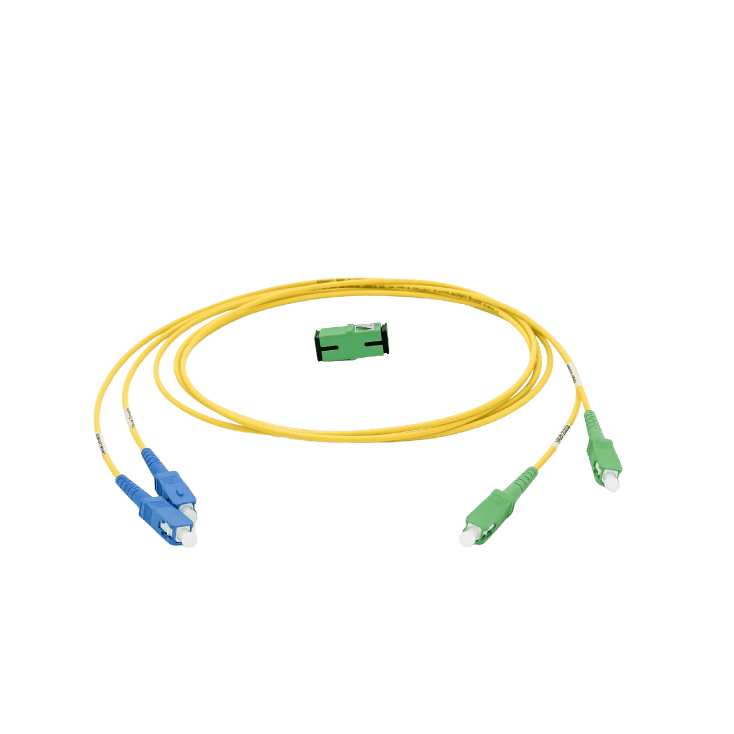

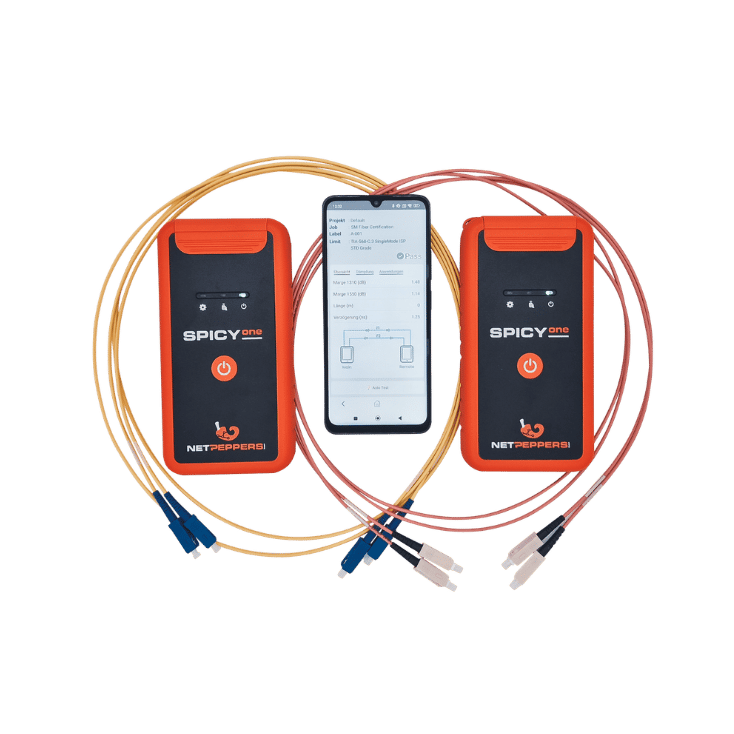

- COMPLETE REFERENCE KIT
Each kit includes two reference measurement cables and one matching reference adapter. This allows reference setting, cable testing, and attenuation measurements to be performed easily.
| Technical Data | Reference Measurement Cable Kits |
|---|---|
| Instrument Connector (Multimode & Singlemode) | SC/UPC |
| System Connector (Singlemode) |
SC/UPC, LC/UPC, FC/UPC, ST/UPC, E2000/UPC SC/APC, LC/APC, FC/APC, ST/APC, E2000/APC |
| System Connector (Multimode) | SC/UPC, LC/UPC, FC/UPC, ST/UPC, E2000/UPC |
| Length | 1,5 m |
| Cable Reinforcement | Steel armor |
| Test Certificate | Yes (concentricity, insertion loss against reference, return loss against reference, core offset, core diameter) |
| Guaranteed Insertion Loss |
≤ 0,1 dB Multimode ≤ 0,2 dB Singlemode |
| Guaranteed Return Loss |
> 35 dB Multimode UPC > 50 dB Singlemode UPC > 85 dB Singlemode APC |
| Fiber Type |
OS2 Singlemode OM4 Multimode |
| Scope of Delivery | 2 reference measurement cables, 1 reference adapter |
| Order No. |
NP-FIBER-REFKITMM-SC-UPC-E2000-UPC NP-FIBER-REFKITMM-SC-UPC-FC-UPC NP-FIBER-REFKITMM-SC-UPC-LC-UPC NP-FIBER-REFKITMM-SC-UPC-SC-UPC NP-FIBER-REFKITMM-SC-UPC-ST-UPC NP-FIBER-REFKITSM-SC-UPC-E2000-APC NP-FIBER-REFKITSM-SC-UPC-E2000-UPC NP-FIBER-REFKITSM-SC-UPC-FC-APC NP-FIBER-REFKITSM-SC-UPC-FC-UPC NP-FIBER-REFKITSM-SC-UPC-LC-APC NP-FIBER-REFKITSM-SC-UPC-LC-UPC NP-FIBER-REFKITSM-SC-UPC-SC-APC NP-FIBER-REFKITSM-SC-UPC-SC-UPC NP-FIBER-REFKITSM-SC-UPC-ST-APC NP-FIBER-REFKITSM-SC-UPC-ST-UPC |
